BM
Baoming Plastics 东莞市宝铭塑胶制品有限公司 · Est. 2000
25 Years of Tooling Experience

Small & Medium Injection Mold Manufacturing
with 25 Years of Tooling Experience

We build complete injection molds for plastic parts, with in-house mold design, EDM, fitting, assembly, polishing, trial molding and final inspection. CNC machining is supported by long-term partners under our process and quality control.

Request a Quote View Capabilities
  • 25 Years Mold-Making
  • Mold up to 500×700×550 mm
  • Typical Weight 200–800 kg
  • Trial Molding 90T–200T
  • CMM Inspection Available
  • DFM + Trial Report Provided
What We Do

Complete Tooling, Handled by One Experienced Team

Four core services — from first drawing review to shipment — planned and controlled by the same tooling team that has been building molds for 25 years.

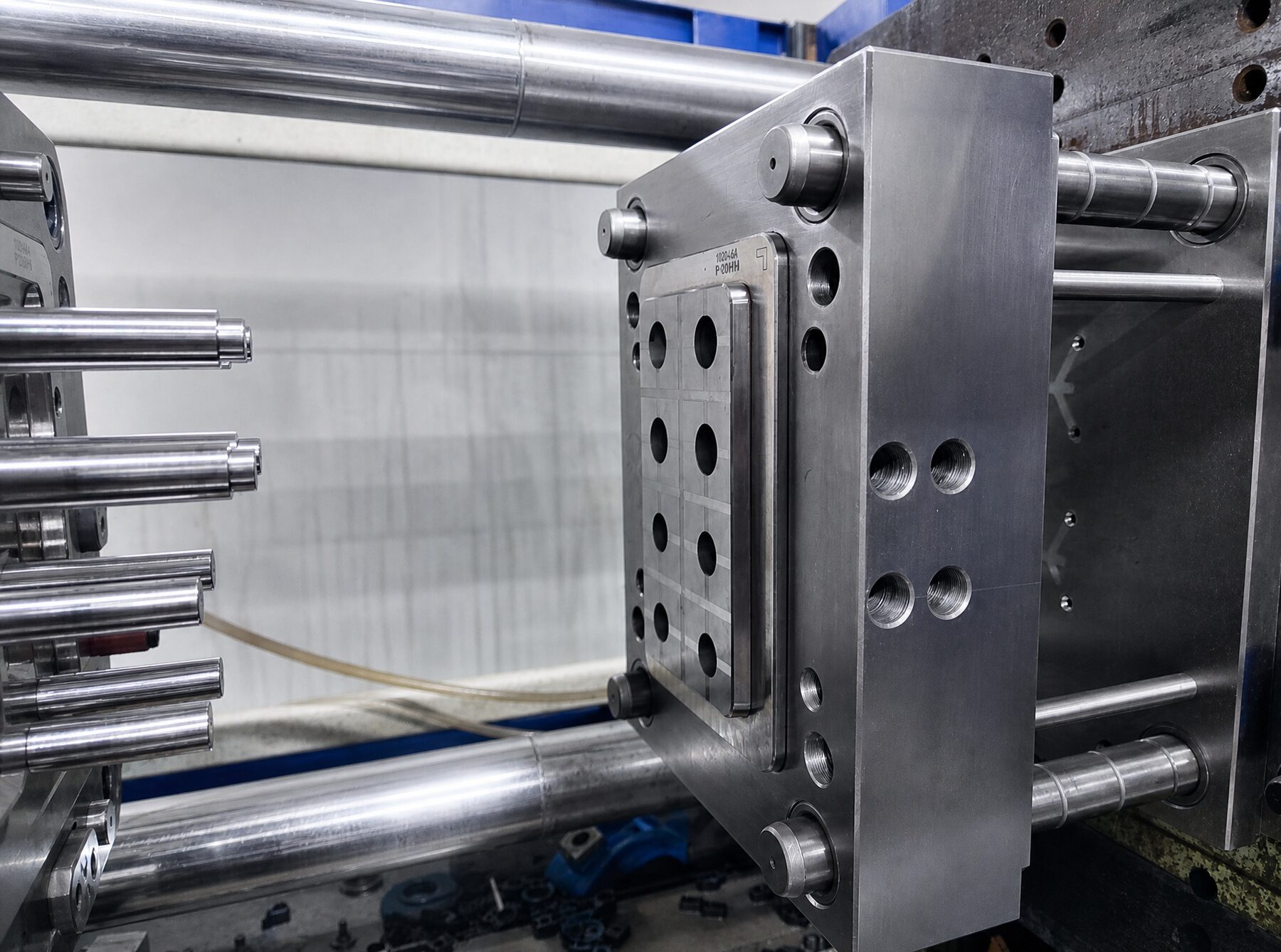

Open injection mold showing core pins and cooling

Mold Design

In-house mold design with DFM review — parting line, gating, ejection and cooling worked out before steel is cut.

Read more →

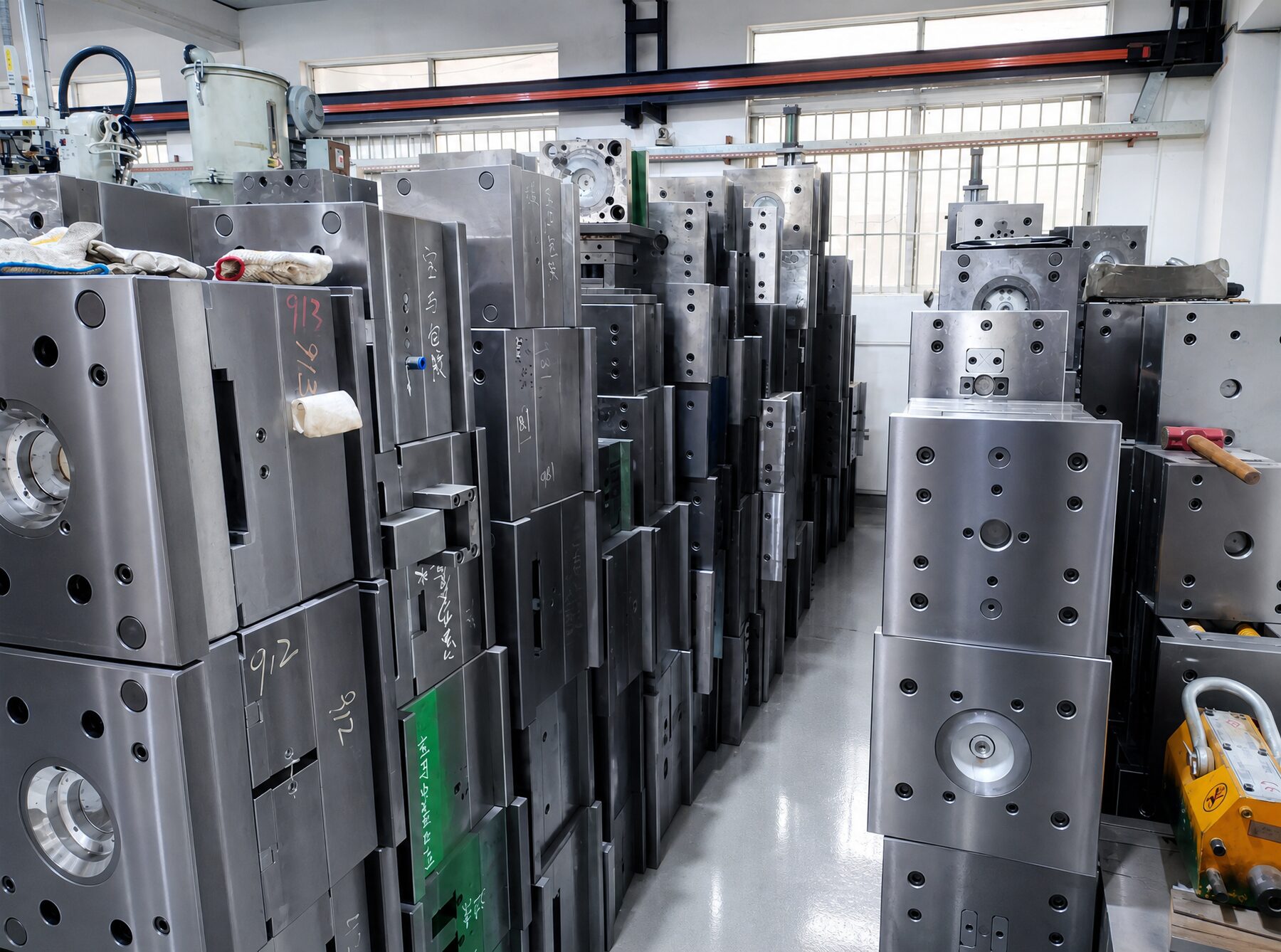

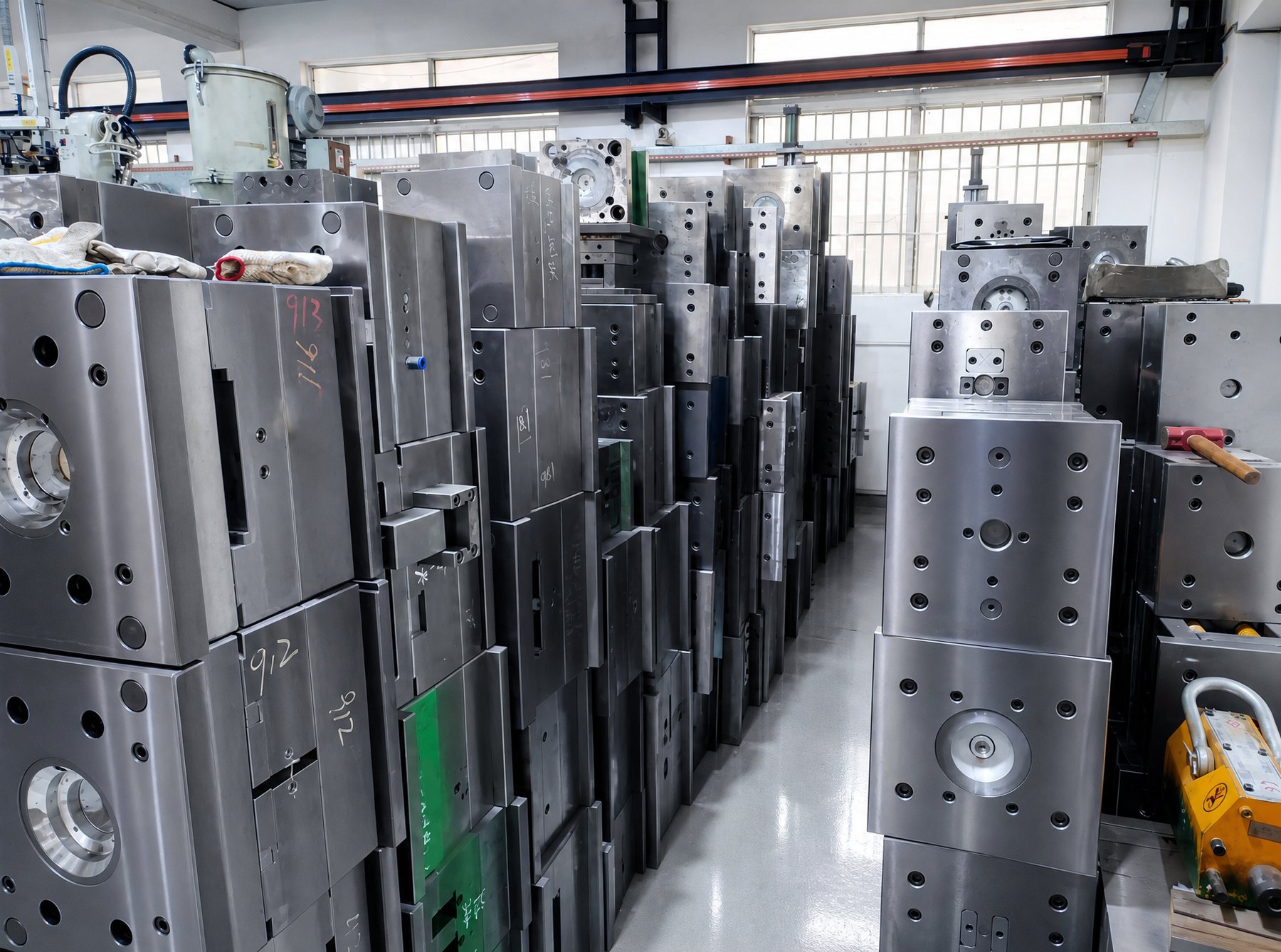

Row of finished injection mold bases in the workshop

Injection Mold Manufacturing

Complete tools built for small and medium plastic parts — single-shot, prototype and small-series production molds.

Read more →

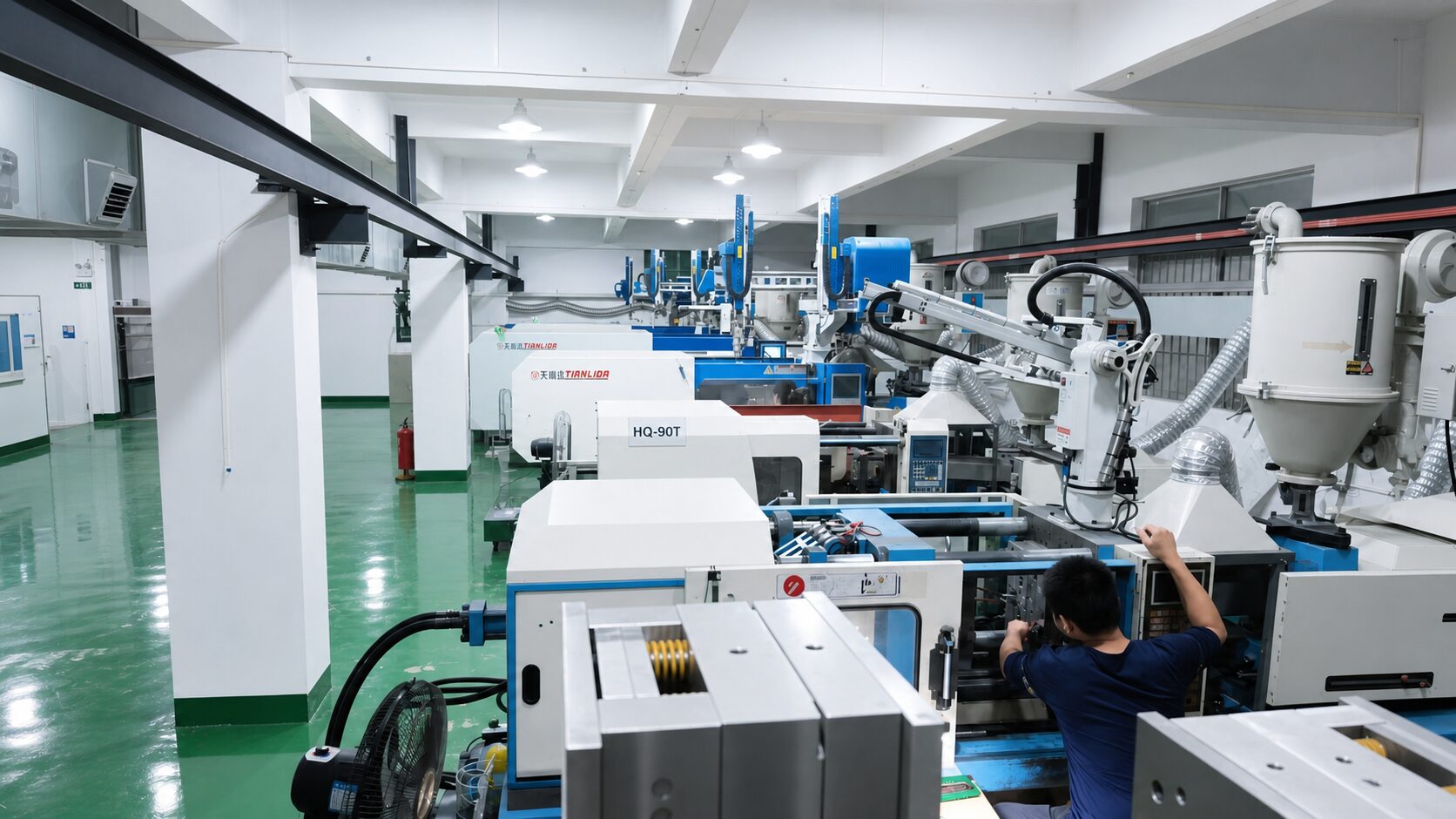

Injection molding machines running trial shots

Trial Molding & Inspection

T1 trials on our 90T–200T machines, with sample photos, trial report, CMM check and appearance inspection before shipment.

Read more →

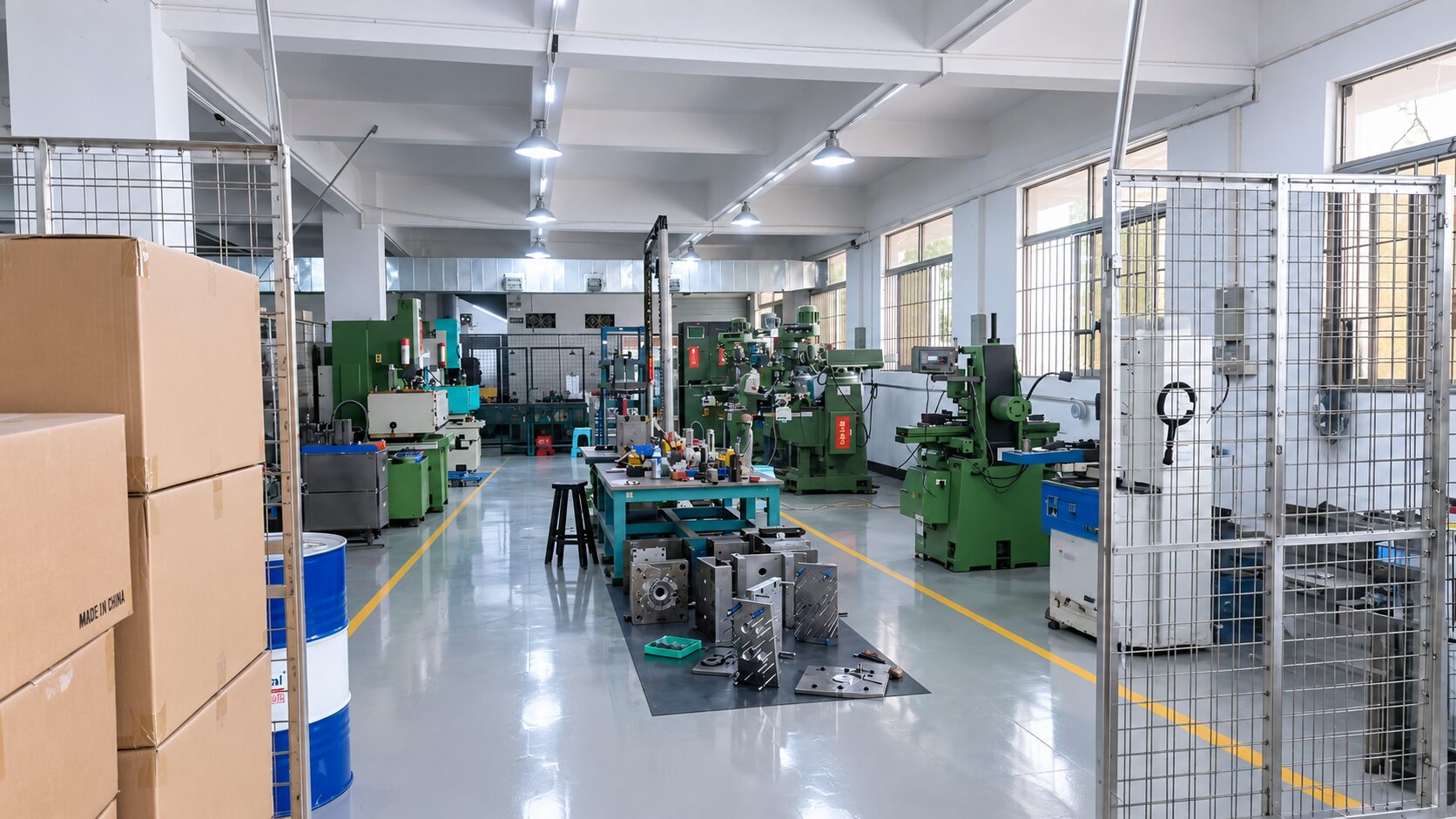

EDM and fitting bay

Mold Repair & Modification

Inserts, cores, cavities and spare parts. Re-cutting, texture repair and structural modifications for tools already in service.

Read more →
Capability Snapshot

Practical Numbers, Not Marketing Numbers

We are honest about where we fit. These are the mold and part sizes we make well every day — outside this window, we will tell you before quoting.

500 × 700 × 550 mm
Max mold size
200 – 800 kg
Typical mold weight
50 – 300 mm
Typical part size
~450 × 320 mm
Max plastic part
90T – 200T
Trial molding machines
0.02 – 0.2 mm
Common part tolerance
0.005 – 0.02 mm
Insert / core machining
HRC 52 – 58
Heat treatment hardness
Manufacturing Flow

A Clear Path from Drawing to Shipment

Every project follows the same controlled steps. CNC machining is handled by long-term partners under our tooling team's process and quality control.

Drawing Review

Confirm scope, feasibility, missing info.

DFM Review

Parting, gate, ejection, cooling advice.

Mold Design

3D mold design + 2D drawings for approval.

Steel Preparation

Steel selection, cutting, pre-machining.

CNC / EDM

CNC via long-term partners; EDM in-house.

Fitting

In-house fitting of core, cavity and inserts.

Assembly

Slider, lifter, ejector, cooling assembled.

T1 Trial

Trial molding on 90T–200T, samples + video.

Inspection

Critical dims, CMM, appearance, assembly.

Packing & Ship

Wooden case, photos, documents to buyer.

Note on CNC: CNC machining is supported by long-term machining partners we have worked with for years, controlled by our own tooling team. We do not claim full in-house CNC — but every step is inspected before it moves to fitting and assembly.
Suitable Projects

Where This Workshop Fits

We are set up for small and medium tools, with careful process control and honest lead times. If your project is outside this window, we will say so before quoting instead of after shipping.

  • Single-shot injection molds
  • Small and medium production molds
  • Prototype and low-volume molds
  • Mold inserts, core & cavity parts, and spare parts
  • Mold repair and structural modification
  • Plastic parts for electronics, appliances, automotive non-safety, industrial components and medical device housings
Not a Fit

We Will Tell You Before You Send Drawings

Being honest about our capability boundary is part of the trust we owe overseas buyers. For the following, we would rather refer you than accept work we can't do well.

  • Molds over ~1 ton or larger than 500×700×550 mm
  • Large automotive bumper and exterior panel molds
  • Very high-cavity, high-speed thin-wall packaging molds (e.g. 64-cavity cap tools)
  • High-risk implantable or life-critical medical device molds
Quality & Documentation

Documented Process — Not a Verbal Promise

Every project ships with a paper trail. When you receive the mold, you receive the evidence that the process was controlled.

  • CMM inspection of critical dimensions
  • Material certificates for mold steel
  • Heat treatment and hardness reports
  • T1 trial report with sample photos
  • DFM review record kept with the tool
  • Final inspection and packing photos before shipment

See our full quality process →

Open mold showing precise core pins and finished surfaces
Application Examples

Part Types We Regularly Tool For

Representative product types that fit our capability window. Real customer photos are added case-by-case as projects allow.

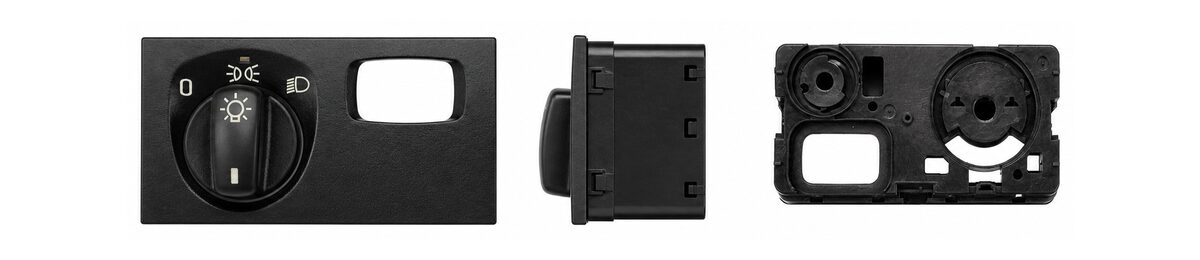

Automotive Automotive headlight switch panel

Automotive Light Control Switch Panel

Material
ABS / PC+ABS
Mold type
Cold runner, side gate, 1+1 cavity
Focus
Surface finish, hole tolerance, symmetry

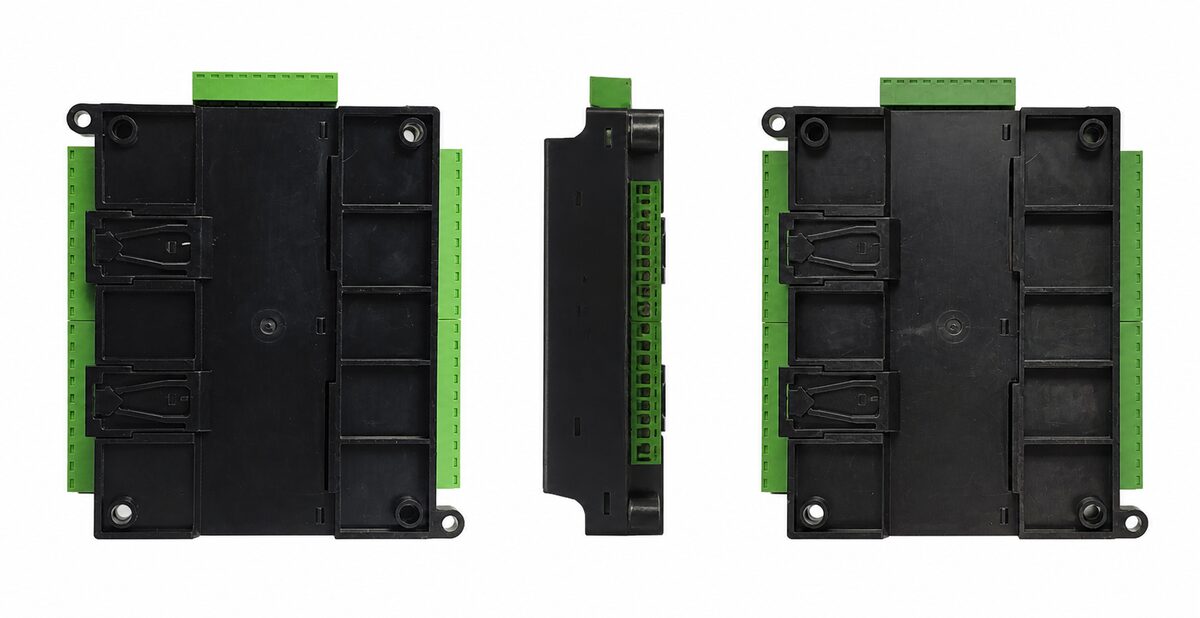

Electronics Electronic control box housing

Electronic Control Box Housing

Material
ABS / PC+ABS
Mold type
Cold runner, side gate, 1-cavity
Focus
Snap-fit fitment, screw boss strength

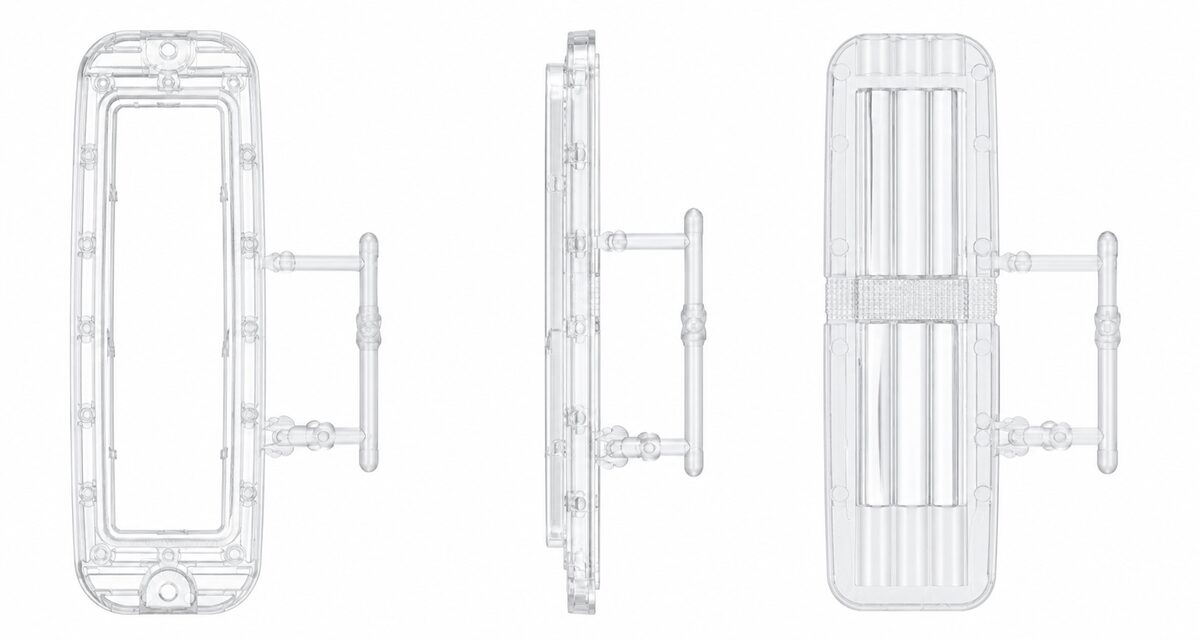

Optical Clear automotive light lens

Clear Automotive Light Lens

Material
PC / PMMA
Mold type
Cold runner, submarine gate, 1-cavity
Focus
Optical polish, no weld line in view zone

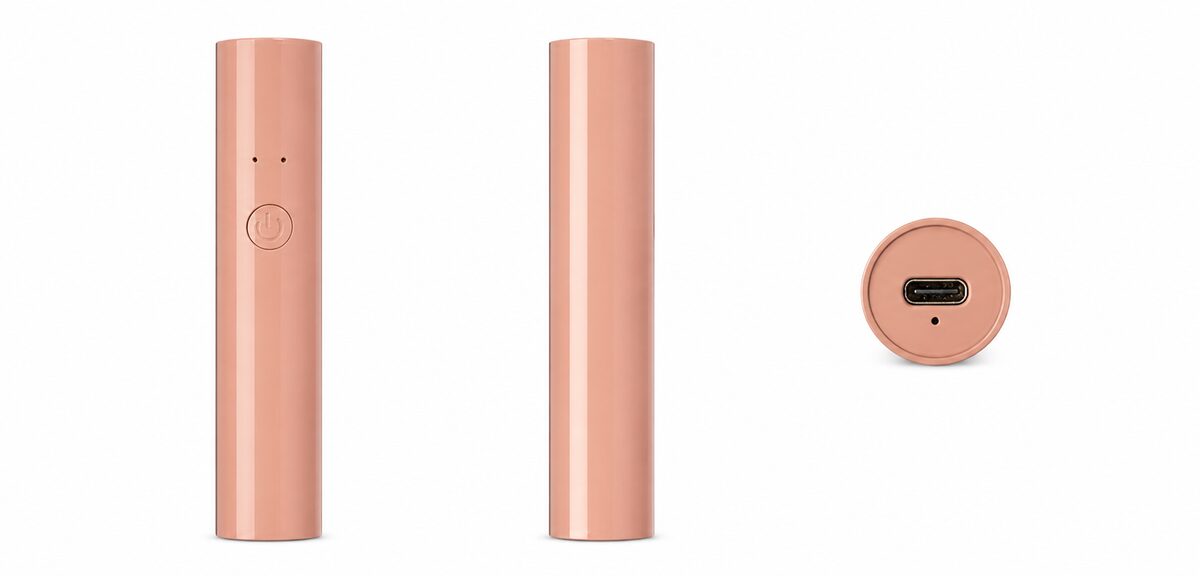

Cosmetics Rose gold cylindrical bottle shell

Cosmetic Bottle Outer Shell

Material
PC / PETG
Mold type
Cold runner, pin gate, 1+1 cavity
Focus
Coating-ready finish, roundness

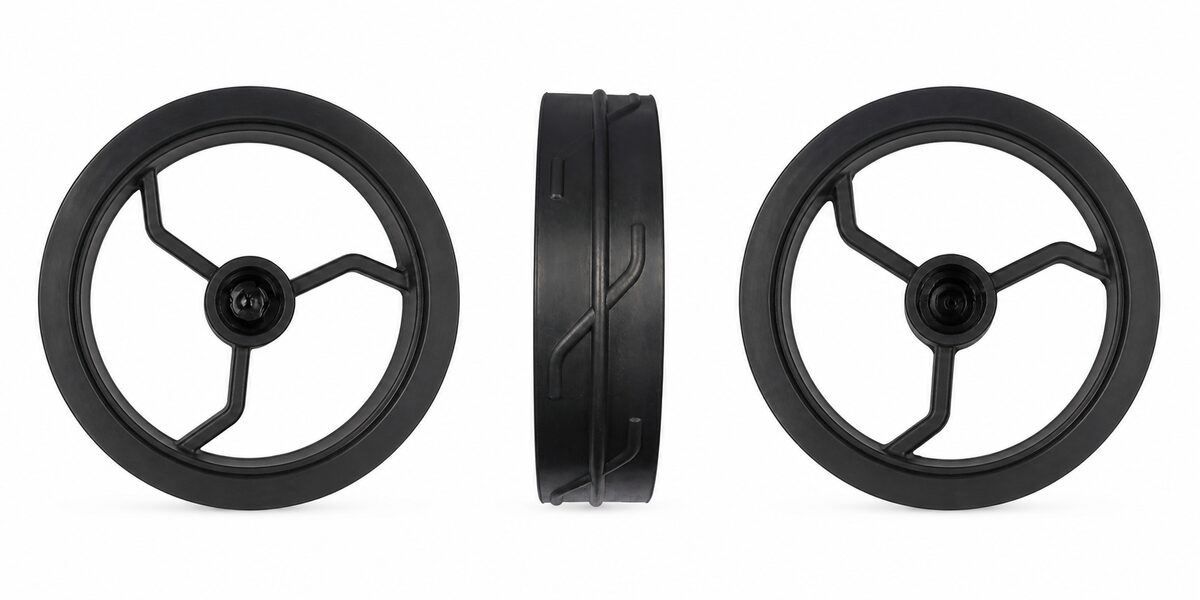

Industrial Plastic hand wheel component

Industrial Hand Wheel

Material
ABS / PA66
Mold type
Cold runner, 1-cavity with insert
Focus
Metal insert location, spoke strength

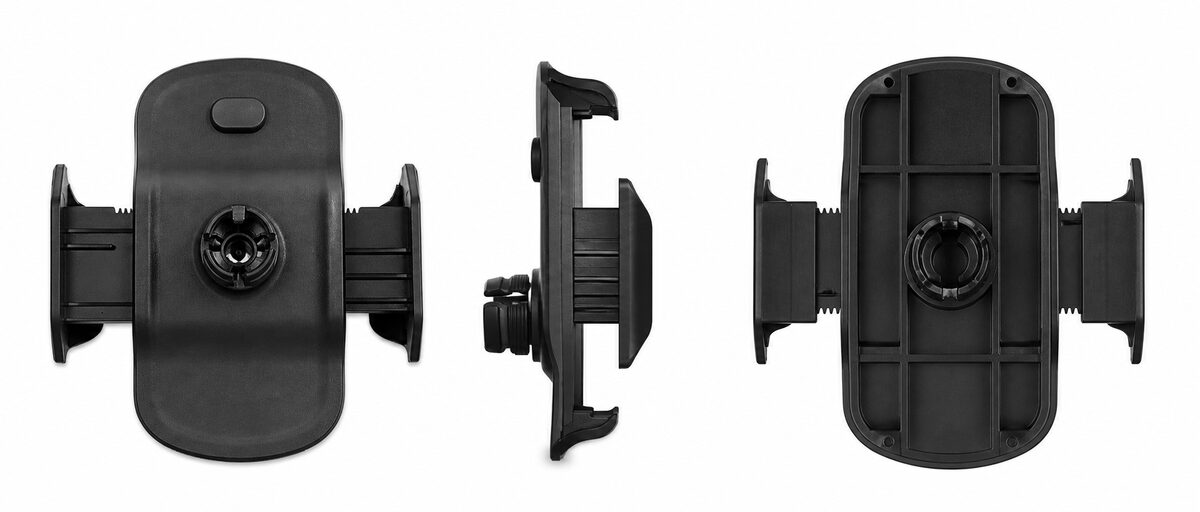

Consumer Phone holder base assembly

Phone Holder Base Assembly

Material
ABS + TPU pad
Mold type
Cold runner, 1-cavity + suction pad tool
Focus
Fit between rigid body and soft pad

Images shown are application examples of product types we regularly tool for. Where real project photos are available, they are used on the individual case study page.

See all case studies →

Send Your Drawings for Review

NDA is available before drawing review. We review drawings before confirming price, lead time and tooling feasibility — we do not quote blind.

Request a Quote
